Rainwater filter for installation in horizontal pipes in the ground or for outdoor installation. Optionally with 50 cm extension pipe for adapting the inspection opening to ground level. Rainwater inlet freely rotatable. Tested according to ATV: Can be driven over by vehicles up to 30 t. Housing made of polypropylene. Filter insert made of stainless steel, low-maintenance. Inspection interval 2 times a year. When necessary we recommend to do the cleaning of the filter insert in a dishwasher. Mesh size of the filter fabric 0.28 mm (standard version) or 0.44 mm.

Drainage-proof according to DIN EN 12056 / EN 752, fulfils DIN 1989.

0 of 0 reviews

Leave a review!

Share your experiences with other customers.


The payment is uncomplicated in our store! You can find detailed info about payment and shipping here. We offer the following payment methods:

Pay online PayPal BLIK iDEAL Multibanco OXXO Trustly Prepayment

Worldwide shipping

FREE SHIPPING WITHIN GERMANY FOR ORDERS OVER €50.

Once your order has been placed, you will receive a confirmation email informing you that our shipping team has received your order. Once your order has been processed, you will receive an email notification with your tracking information. Shipping costs will not be refunded in the event of a return. We ship with:

Parcel shipping Pallet delivery Delivery by forwarding agent Delivery by WISY AG

Function and field of application

The WFF 150 vortex fine filter is usually installed below ground level in the horizontal water pipe. It filters the rainwater flowing in from the side and directs it laterally to the cistern. Its filter insert consists of fine stainless steel mesh with a mesh size of only 0.28 mm. This reliably separates leaves, moss and other washed-in debris and also flushes them laterally into the receiving water. A coarser mesh size of 0.44 mm is also available as an option, as well as free-standing installation with the wall mountings available as accessories.

Overview

The clean rainwater is optimally prepared for storage in the cistern and subsequent use in washing machines, flushing toilets or for cleaning purposes. The use in riding and sports facilities is ideal where large areas have to be irrigated or the demand for soft water for cleaning purposes is high.

All WISY vortex fine filters are also ideally suited for cleaning process water. Examples of applications can already be found in the paper, textile and food industries.

Drainage capacity

12.8 litres of water per second can flow through the WFF 150. In Germany, this corresponds to the drainage volume of a projected roof area of 500 m². As in all WISY filters, the open cross-section is maintained throughout. There are no constrictions in the cross-section where dirt can accumulate. Not even in the case of cloudburst-like rainfall . Safe drainage according to DIN EN 12056 / EN 752 is always guaranteed, DIN 1989 is fulfilled.

Efficient rainwater filter

Convince yourself of the high performance of the WISY vortex fine filters: The rainwater flowing in from the side is efficiently filtered by the filter insert made of fine stainless steel mesh with a mesh size of only 0.28 mm and passed on to the cistern.

In this way, leaves, moss and smaller particles washed along with the water are reliably separated, permanently washed down the filter mesh and then washed away.

Rotatable pipe connections and optional extension tube

The rotatable outlets for flushing water and filtered rainwater create flexibility. They can be turned horizontally in relation to each other and to the inlet and thus adapted to the installation situation.

With the optional extension tube, the inspection opening of the vortex fine filter is raised to ground level.

Filter carries vehicles

The cover and housing of the WFF 150 vortex fine filter are so sturdily constructed that trucks weighing up to 30 tonnes overall weight can drive over them (standard vehicles according to DIN1072 / SLW30).

Oxygen enrichment

During filtration in the vortex fine filter, the water is enriched with oxygen. The high oxygen content additionally improves the water quality and keeps the water fresh.

Low-maintenance and -friendly

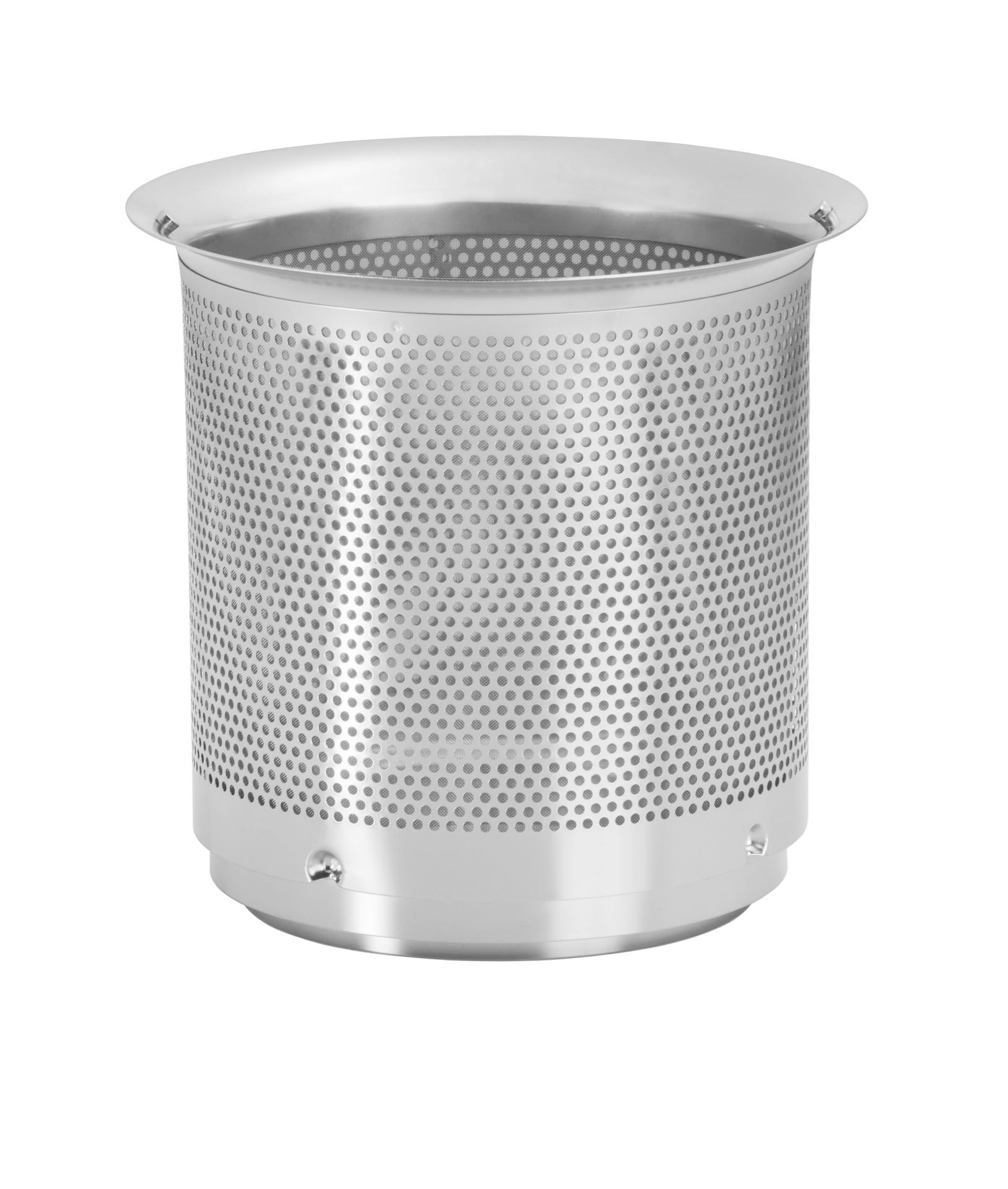

All WISY filter inserts are designed to be particularly low-maintenance. Their smooth stainless steel surface makes it almost impossible for impurities to adhere. If necessary, the filter insert can be easily removed from the top of the housing with the help of the lift-out bracket provided and cleaned with a high-pressure cleaner or in the dishwasher.

Detailed insight

Take a look at how easy it is to remove the filter insert of the vortex fine filter using the lift-out bracket provided and then reinsert it into the filter housing:

matching accessories

Filter inserts for all WISY filters, FS, STFS, RS, GRS, LineAr and WFF Filter inserts for all WISY filters, FS, STFS, RS, GRS, LineAr and WFF
Blind insert for FS, STFS, RS, GRS and WFF
Blind insert for FS, STFS, RS, GRS and WFF
Variants from €29.75*
€141.61*
soakaway strainer soakaway strainer
soakaway strainer
Variants from €161.84*
€189.21*

Complete 4-step system

Tip
Smoothing inlet for cisterns Smoothing inlet for cisterns
Floating coarse suction filter as a set Floating coarse suction filter as a set
Tip
Overflow siphon DN 110 Overflow siphon DN 110
AspriPlus self-priming pump AspriPlus self-priming pump
AspriPlus self-priming pump
Variants from €593.81*
€843.71*

other Rainwater filter

Tip
Vortex fine filter WFF 100 with extension tube Vortex fine filter WFF 100 with extension tube
Vortex fine filter WFF 100 with extension tube
Variants from €374.85*
€428.40*
Vortex fine Filter WFF 300 Vortex fine Filter WFF 300
Cistern filter LineAr 100 Cistern filter LineAr 100
Tip
Filter collector FS Filter collector FS

Article number

Version Mesh size Art. no.
WFF 150 with extension pipe 0,28 WF 1011
WFF 150 with extension tube 0,44 WF 1012
WFF 150 without extension tube 0,28 WF 1002
WFF 150 without extension tube 0,44 WF 1001
