Rainwater filter for installation in horizontal pipes in the ground or for outdoor installation. Optionally with 50 cm extension pipe for adapting the inspection opening to ground level. Rainwater inlet freely rotatable. Tested according to ATV: Can be driven over by vehicles up to 30 t. Housing made of polypropylene. Filter insert made of stainless steel, low-maintenance. Inspection interval 2 times a year. When necessary we recommend to do the cleaning in a dishwasher. Mesh size of the filter fabric 0.28 mm (standard version) or 0.44 mm

Drainage-proof according to DIN EN 12056 / EN 752, fulfils DIN 1989.

0 of 0 reviews

Leave a review!

Share your experiences with other customers.


The payment is uncomplicated in our store! You can find detailed info about payment and shipping here. We offer the following payment methods:

Pay online PayPal BLIK iDEAL Multibanco OXXO Trustly Prepayment

Worldwide shipping

FREE SHIPPING WITHIN GERMANY FOR ORDERS OVER €50.

Once your order has been placed, you will receive a confirmation email informing you that our shipping team has received your order. Once your order has been processed, you will receive an email notification with your tracking information. Shipping costs will not be refunded in the event of a return. We ship with:

Parcel shipping Pallet delivery Delivery by forwarding agent Delivery by WISY AG

Installation and function

The WFF 100 vortex fine filter is usually installed in the ground in front of the cistern in the horizontal rainwater pipe. However, it is also suitable for free-standing installation, in which case it is best fixed with the optionally available wall fastening.

Rainwater flowing in from the side is filtered by the WFF 100 vortex fine filter and passed on to the cistern. In the process, it passes through the filter insert made of fine stainless steel mesh with a mesh size of only 0.28 mm. In this way, not only leaves and moss, but also smaller particles washed along with the water are reliably separated and flushed into the canal or an infiltration trough.

Made in Germany

Rain from
200 m² roof surface

This is how much water the WFF 100 can filter.




Ideal for the family house

The WFF 100 rainwater filter is perfectly suitable for your detached family house. It collects water for the garden, flushing the toilet or the washing machine.

Efficient rainwater filter

Convince yourself of the high performance of the WISY vortex fine filters: The rainwater flowing in from the side is efficiently filtered by the filter insert made of fine stainless steel mesh with a mesh size of only 0.28 mm and passed on to the cistern.

In this way, leaves, moss and smaller particles washed along with the water are reliably separated, permanently washed down the filter mesh.

Reinigung

Low maintenance

The filter insert keeps itself clean and rarely needs cleaning.



Easy cleaning in the dishwasher

When the time comes, cleaning is particularly easy. For example, in a standard dishwasher.

Drainage-proof according to standard!

The open cross-section of the rainwater pipes (DN 110) is maintained throughout the entire filter. There are therefore no constrictions where first dirt and leaves and later rainwater could accumulate. Not even in the case of cloudburst-like rain.

Further advantages of the WFF 100 vortex fine filter

Oxygen enrichment

During filtration in the vortex fine filter, the water is enriched with oxygen. The high oxygen content additionally improves the water quality and prevents the growth of undesirable, anaerobic microorganisms.

Cover and housing accessible by truck

The cover and housing of the WFF 100 vortex fine filter are designed so sturdily that they can be driven over by lorries weighing up to 30 tonnes (standard vehicles according to DIN1072 / SLW30).

5 years warranty

In the unlikely event of a material defect, WISY provides a five-year guarantee.

Made in Germany

Storable

The filtered rainwater can be stored long-term in a cistern without further treatment.

WISY guarantee - valid for 5 years

All components of the vortex fine filter are subjected to thorough quality control to ensure perfect operation. In the unlikely event of a material defect, WISY offers a five-year guarantee.

Matching accessories

Wall-mounting bracket for vortex fine filter WFF 100 and 150

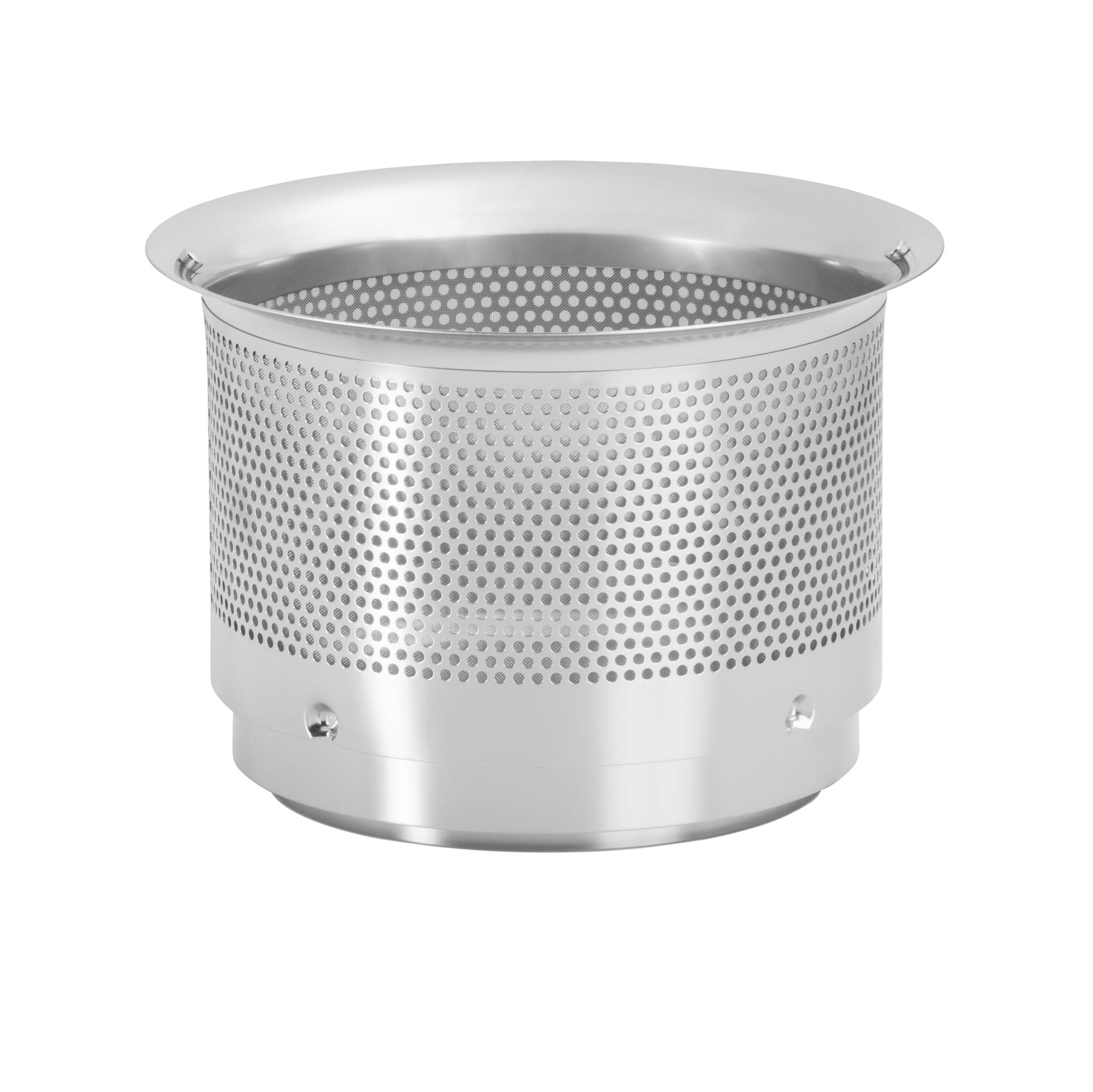

Filter inserts for all WISY filters, FS, STFS, RS, GRS, LineAr and WFF

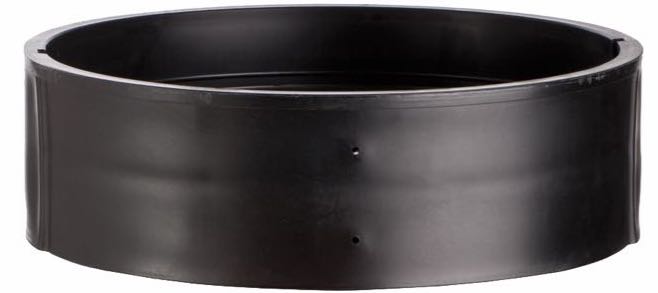

End ring Vortex Fine Filter WFF 100 / 150 End ring Vortex Fine Filter WFF 100 / 150

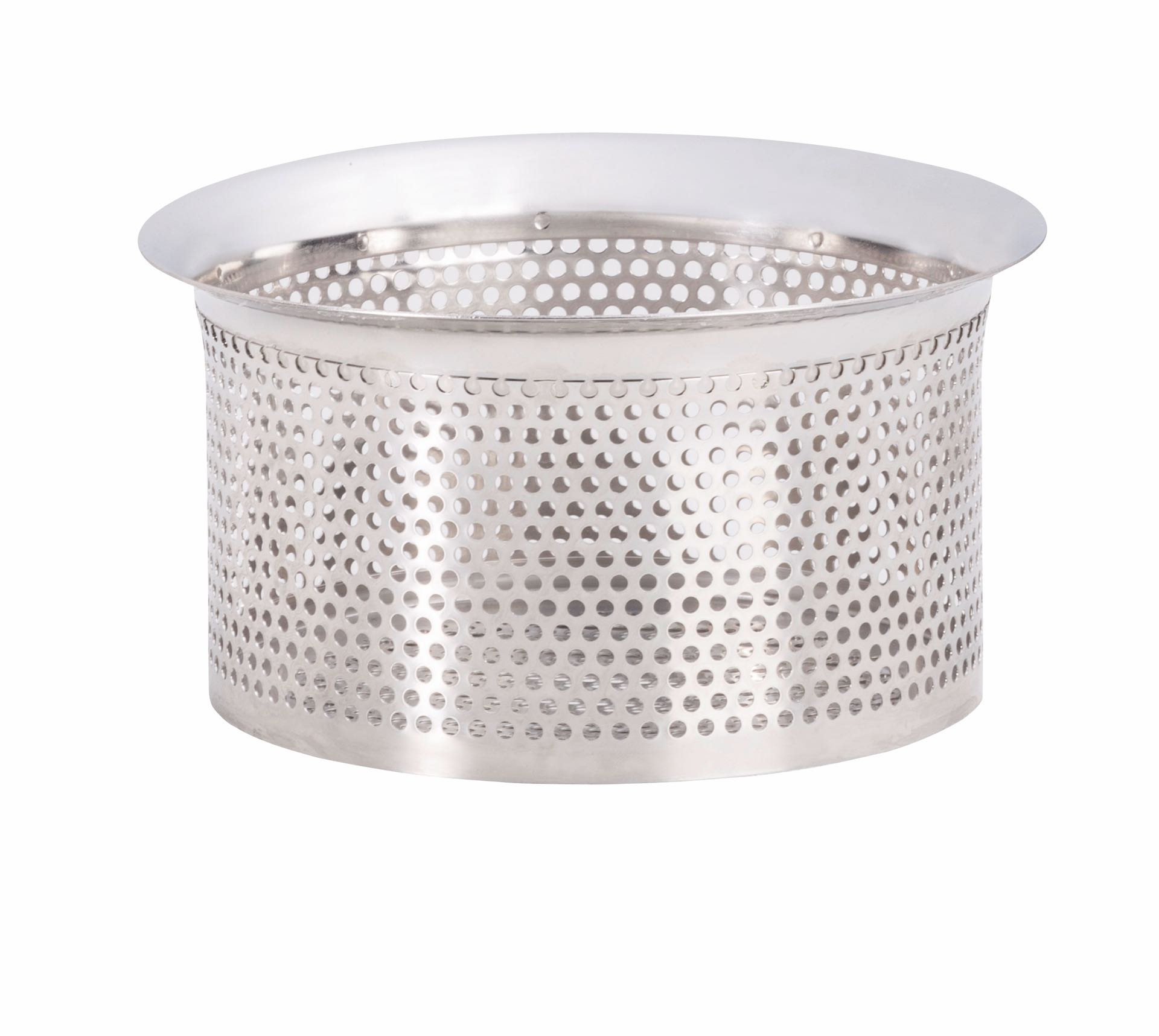

soakaway strainer

Complete 4-step system

Tip
Smoothing inlet for cisterns Smoothing inlet for cisterns
Floating coarse suction filter as a set Floating coarse suction filter as a set
Floating coarse suction filter as a set
Variants from €85.68*
€148.75*
Tip
Overflow siphon DN 110 Overflow siphon DN 110
AspriPlus self-priming pump AspriPlus self-priming pump
AspriPlus self-priming pump
Variants from €593.81*
€843.71*

Other Rainwater filter

Tip
Vortex fine filter WFF 150 with extension tube Vortex fine filter WFF 150 with extension tube
Vortex fine filter WFF 150 with extension tube
Variants from €546.21*
€581.91*
Cistern filter LineAr 100 Cistern filter LineAr 100
Tip
Filter collector FS Filter collector FS

Article data

Extension tube Mesh size Article number
WFF 100 with extension tube 0.28 mm WF 2011
WFF 100 with extension tube 0.44 mm WF 2012
WFF 100 without extension tube 0.28 mm WF 2002
WFF 100 without extension tube 0.44 mm WF 2001
