Cistern filter LineAr 100
€371.28*
- Filters rainwater from up to 200 m² roof surface (temperate climate regions)
- Only 5 cm height offset between inlet and outlet
- For installation in the cistern
- Easy to retrofit
- Low maintenance due to vertical filter mesh
Available, delivery time: 2-5 days
The LineAr 100 rainwater filter made of plastic has a vertical filter mesh made of stainless steel with a mesh size of 0.44 mm. The filter body is made of polyethylene (PE) and all connections have a diameter of DN 110. The filter can be installed either in the dome shaft of a cistern or in a separate shaft and complies with the requirements of DIN 1986. A cleaning brush is included in the scope of delivery.
Drainage-proof according to DIN EN 12056/EN752 meets DIN 1989.
The payment is uncomplicated in our store! You can find detailed info about payment and shipping here. We offer the following payment methods:
Worldwide shipping
FREE SHIPPING WITHIN GERMANY FOR ORDERS OVER €50.
Once your order has been placed, you will receive a confirmation email informing you that our shipping team has received your order. Once your order has been processed, you will receive an email notification with your tracking information. Shipping costs will not be refunded in the event of a return. We ship with:
Minimal height offset, straight pipe run
Whether in a new building or for retrofitting: the space-saving LineAR 100 filter is easy to plan in and does not require any additional earthworks.
There is only a good five centimetres between the inlet for rainwater and the outlet for the dirt load. Due to this small height offset, the LineAr 100 can be easily integrated into an existing pipe run. It can even be placed directly in the cistern without affecting the slope of the pipeline.
Low maintenance
The robust rainwater filter has a low maintenance frequency of only 2-3 times per year.
5 years warranty
We offer a WISY guarantee of 5 years for our reliable rainwater filter.

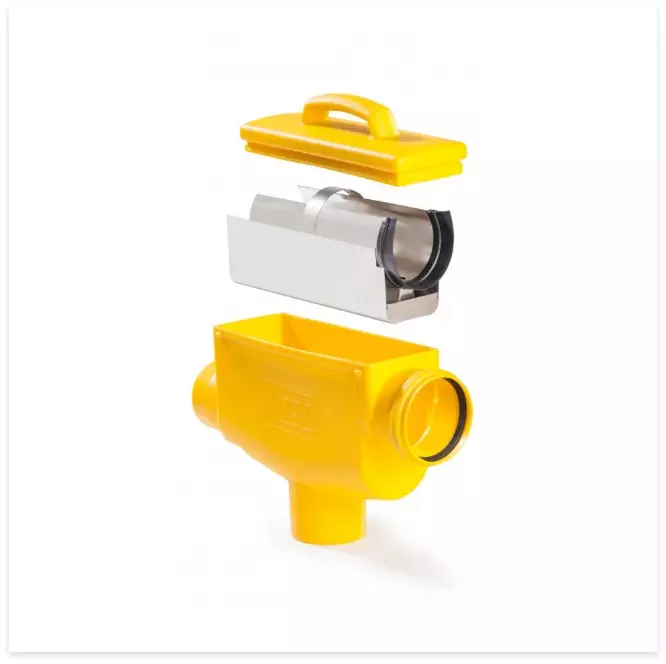

Well thought out design

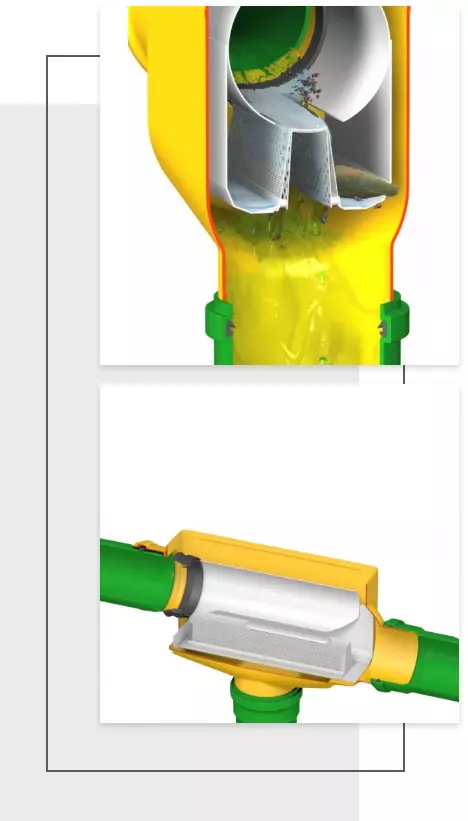

WISY's LineAr Filter 100 has a vertically positioned filter mesh which leaves, moss or suspended matter simply fall past and are washed away by the residual water. This is the decisive advantage over almost horizontal filter surfaces, which get dirty very quickly.
The pipe diameter remains completely intact in the LineAr Filter 100. Even a tennis ball - washed off the roof by the rain - can pass through the filter housing unhindered. The rainwater obtained is not only clean, but also particularly soft by nature. It can be used perfectly to flush the toilet, wash laundry or water the garden.
Quality with 5 years warranty
The LineAr Filter 100 is robust and has a filter insert made of stainless steel. It contains neither wear parts nor moving assemblies that could jeopardise safe operation. We give a 5-year guarantee on this.
Product Video: Cistern filter LineAr 100
Rainwater filter
Technical data
| Overview | Details |
|---|---|
| Maximum roof area, temperate climate | 200 m² |
| Height offset | 5 cm |
| Water yield at 1.4 l/min | > 90 % |
| Maintenance frequency | 2-3 x per year |
| Diameter of all connection pipes | DN 100 (110 mm) |
| Warranty | 5 years |
| Housing material | Polyethylene or stainless steel |
