Floating fine suction filter as a set
€224.91*
- Floating fine suction filter with 0.3 mm mesh size with non-return valve and 1" hose connection
- for suction pumps with 1" nozzle
- floating ball ø 15 cm
- PE screw connection 90° for connection to PE pipe 32 x 3 mm (1")
- 2 m highly flexible 1" suction hose with two stainless steel clamps for attachment to the suction filter and the PE screw connection
- max. suction pressure -0.8 bar, not overpressure. Max. negative pressure -0.8 bar, not suitable for overpressure
Available, delivery time: 2-5 days
The floating suction fine filters are suitable for water that has not been pre-filtered, for example from open waters, rivers, lakes, ponds or wells. The fine filters have a mesh size of only 0.3 mm. Versions with a non-return valve for suction pumps or without a non-return valve for submersible pressure pumps are available.
The optionally integrated non-return valve prevents the hose from running dry when connected to a suction pump. The floating ball is made of environmentally compatible polyethylene, while all other parts are made of stainless steel .
The nozzles on the floating filters are rounded to protect the hose. Even with frequent up and down movement of the floating ball, the hose remains permanently fully functional. The nozzles also have a bead to securely fasten the hose.
Note for floating filters with integrated non return valve: The highly flexible hose cannot hold pressure. It can only be used with suction pumps that are controlled by an automatic switch with non-return valve ! If the system has an expansion vessels that is only controlled by a pressure switch, then the pressure contained in the expansion vessel will extend into the highly flexible suction hose. For that situation it is not suitable! If this applies for your system, please use our Suction and pressure hose instead of the highly flexible hose.
The payment is uncomplicated in our store! You can find detailed info about payment and shipping here. We offer the following payment methods:
Worldwide shipping
FREE SHIPPING WITHIN GERMANY FOR ORDERS OVER €50.
Once your order has been placed, you will receive a confirmation email informing you that our shipping team has received your order. Once your order has been processed, you will receive an email notification with your tracking information. Shipping costs will not be refunded in the event of a return. We ship with:

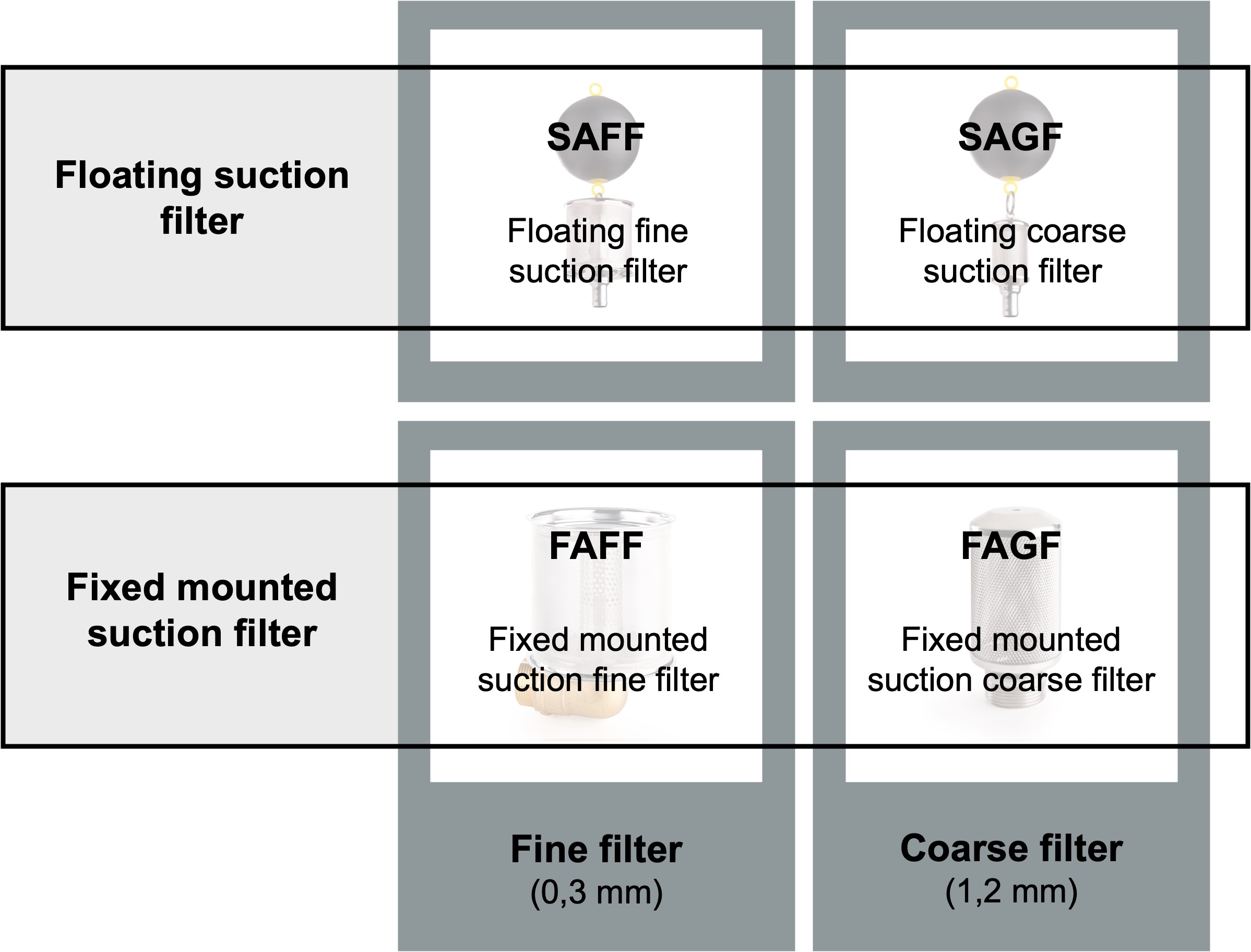

Coarse or fine filtration
- Fine filters (0.3 mm mesh size) are used for drawing water directly from open bodies of water such as rivers, ponds or wells.
- Coarse filters (1.2 mm mesh size) are suitable for pre-filtered water from cisterns, rainwater storage tanks and other closed containers.

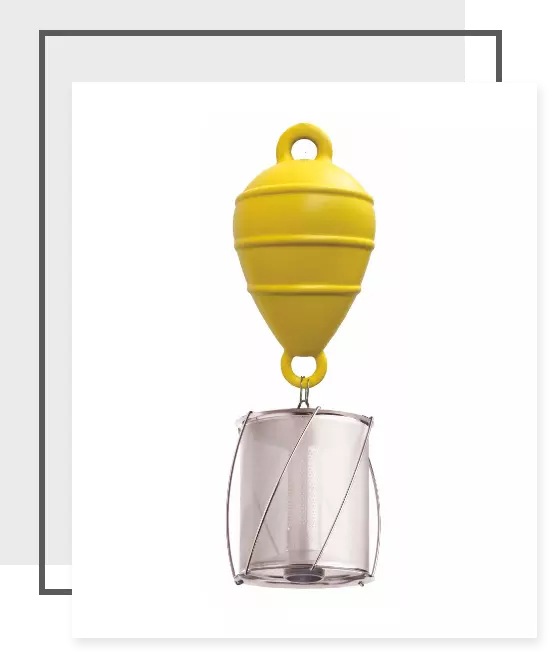

Suction filters for large systems

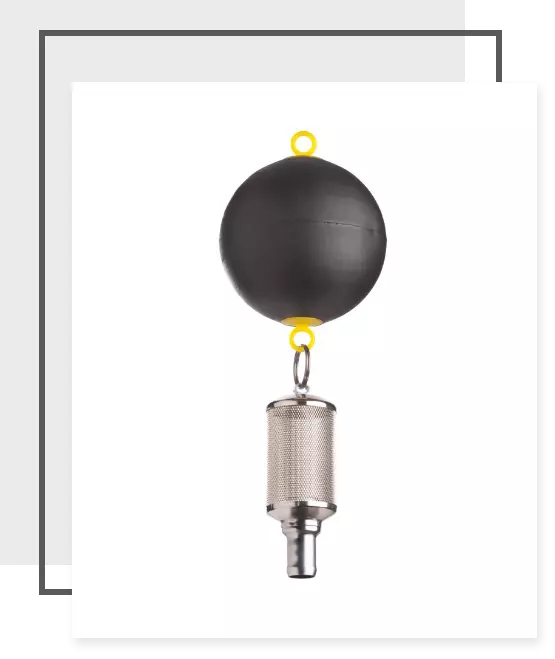

Floating suction filters
Fixed mountable suction filters for submersible pumps
Fixed suction filters are connected directly to the submersible pump without a connecting hose and floating ball. They are available with coarse or fine filter mesh.
A non return valve is mandatory for suction pumps
Non return valve
Suction pump pump with floating suction filter with non return valve
In the set
Selected suction filters are also available as a set with hose and connection for the submersible pump or PE pipe.
matching for our pumps:
other suction filters
Technical data
| Suction fine filter with 0.3 mm mesh size (SAFF and FAFF) | Filter surface | Height and diameter Ø |
Floating ball Ø (floating version) |
|---|---|---|---|
| Suction fine filter with 1" connection | 380 cm² | 120 mm Ø 120 mm |
Ø 150 mm |
| Fine suction filter with 1¼" connection | 380 cm² | 120 mm Ø 120 mm |
Ø 150 mm |
| Suction fine filter with 1½" connection | 800 cm² | 170 mm Ø 220 mm |
Ø 220 mm |
| Suction fine filter with 2" connection | 1,100 cm² | 235 mm Ø 220 mm |
Ø 220 mm |
| Suction coarse filter with 1.2 mm mesh size (SAGF and FAGF) | Filter surface | Height and diameter Ø |
Floating ball Ø (floating version) |
| Suction coarse filter with 1" connection | 165 cm² | 110 mm Ø 60 mm |
Ø 150 mm |
| Suction coarse filter with 1¼ connection | 165 cm² | 110 mm Ø 60 mm |
Ø 150 mm |
| Suction coarse filter with 1½" connection | 380 cm² | 150 mm Ø 100 mm |
Ø 150 mm |
| Suction coarse filter with 2" connection | 380 cm² | 150 mm Ø 100 mm |
Ø 150 mm |
Article number
| Floating suction filters for suction pumps WITH non-return valve | Fine filter (SAFF with 0.3 mm mesh) | Coarse filter (SAGF with 1.2 mm mesh) |
|---|---|---|
| Floating suction filter with hose-protecting 1" nozzle and non-return valve | SZ 9924 | SZ 9915 |
| Floating suction filter with hose-protecting 1¼" nozzle and non-return valve | SZ 9925 | SZ 9916 |
| Floating suction filter with hose-protecting 1½" nozzle and non-return valve | - | SZ 9917 |
| Floating suction filter with hose-protecting 2" nozzle and non-return valve | - | SZ 9918 |
| Set of 2 m highly flexible suction hose on floating suction filter with hose-protecting 1" nozzle, non-return valve, stainless steel hose clamp and 1" PE screw connection with 90° brass elbow | SZ 98 01 | SZ 98 11 |
| Set of 3 m highly flexible suction hose on floating suction filter with hose-protecting 1" nozzle, non-return valve, stainless steel hose clamp and 1" PE screw connection with 90° elbow | SZ 98 02 | SZ 98 12 |
| Floating suction filters for underwater pressure pumps WITHOUT non-return valve | Fine filter (SAFF with 0.3 mm mesh) | Coarse filter (SAGF with 1.2 mm mesh) |
| Floating suction filter with hose-protecting 1" nozzle | SZ 9935 | SZ 9927 |
| Floating suction filter with 1" outside thread | SZ 9936 | SZ 9928 |
| Floating suction filter with hose-protecting 1½" nozzle. | - | SZ 9990 |
| Floating suction filter with 1½" outside thread | SZ 9930 | - |
| Floating suction filter with hose-protecting 2" nozzle. | - | SZ 9991 |
| Floating suction filter with 2" outside thread | SZ 9931 | - |
| Set for submersible pumps with 1" nozzle: Floating suction filter with hose-protecting 1" nozzle on 1 m highly flexible suction hose | SS 9935 | SS 9905 |
| Set for submersible pumps with 1¼" inside thread at suction side: Floating suction filter with hose-protecting 1" nozzle on 1 m highly flexible suction hose | SS 9931 | SS 9901 |
| Set for submersible pumps with 1¼" inside threaded connection: Floating suction filter with hose-protecting 1¼" nozzle on 1 m suction hose | SS 9932 | SS 9902 |
| Suction filter for fixed mounting on submersible pressure pumps | Fine filter (FAFF with 0.3 mm mesh) | Coarse filter (FAGF with 1.2 mm mesh) |
| Fixed suction filter with 1" outside thread | SF 0300 | SG 0331 |
| Fixed suction filter with 1" inside thread | - | SG 0351 |
| Fixed suction filter with outside thread 1¼" and 90° brass elbow | SF 9921 | - |
| Fixed suction filter with 1" outside thread | - | SG 0331 |
| Fixed suction filter with 1¼" outside thread | - | SG 0332 |
| Fixed suction filter with 1½" outside thread | - | SG 0333 |
| Fixed suction filter with 2" outside thread | - | SG 0334 |
