How does a swivel pump work?
A swivel pump works according to a simple mechanical principle in which water is drawn from a well and pumped upwards by manually operating the lever. The movement of the lever sets a piston in motion inside the pump, which creates a vacuum via non-return valves and gradually draws the water upwards, without any electricity or electronic components.
In times of rising energy costs, an independent water supply in the garden is becoming increasingly important, as it reduces costs and conserves resources in the long term. The Schwengel pump for fountains is a tried and tested solution with a centuries-old tradition that enables reliable water delivery thanks to its robust design.
The most important facts summarised
- A swivel pump pumps water using only muscle power and works completely independently of the mains supply
- For technical reasons, the maximum delivery depth is around seven metres and should not be exceeded
- The simple mechanical design with pistons, valves and levers makes the pump durable and low-maintenance
- Particularly suitable for use in gardens, allotments, holiday homes and as an emergency supply in the event of a power failure
- Regular cleaning, suitable lubrication and complete draining in winter are essential for safe operation
The pumping process
At the centre of the technology is a movable piston within the pump cylinder, which ensures the necessary pressure change. During the upward movement, negative pressure is created which draws in the water, while the downward movement prepares the pumping process. Non-return valves fulfil a crucial function as they prevent the water that has already been drawn in from flowing back into the well, thus enabling a continuous pumping process.
The design of the swivel pump is kept simple and is therefore particularly durable and low-maintenance. A manual swivel pump is suitable for well systems with a depth of up to seven metres and is preferably used where there is no power connection. Typical areas of application are gardens, weekend homes or remote properties where a reliable and independent water supply is required.
The most important components
Pump cylinder
The central element of every Schwengel pump is the pump cylinder, which is made of robust cast iron or corrosion-resistant stainless steel, depending on the version. A swivel pump made of stainless steel offers advantages when exposed to moisture and longer service lives, as the material is durable and hygienic. A solid piston moves inside the cylinder, creating the necessary vacuum to reliably draw water from the well.
Seals and valves
Seals play a decisive role in an efficient and loss-free pumping process, as they prevent water loss and enable a uniform pressure build-up. The system is supplemented by two non-return valves, which clearly regulate the flow direction of the water and ensure that water that has already been pumped does not flow back into the well. This valve technology is essential for the functional reliability and smooth operation of the pump.
Swing arm
The swivel itself is designed as a long lever and enables effortless operation even during prolonged use. A protective cover can round off the design by protecting the mechanism from dirt, leaves and the effects of the weather.
Requirements for successful use
For a swivel pump to work reliably over the long term, a number of technical and structural requirements must be met during planning, installation and operation, especially if you want to use the hand water pump efficiently and safely.
- The groundwater level should be a maximum of seven metres below the pump installation, as sufficient suction capacity cannot be achieved above this level
- A stable base or a burglar-proof foundation ensures a firm footing and increases the service life of the entire construction
- Wells or cisterns must be free of coarse dirt to protect pistons, valves and seals from premature wear
- Regular maintenance work, such as checking seals and valves, prolongs functionality and operational safety
- Weatherproof materials protect the mechanics from rust formation and frost damage, especially during long-term outdoor use
- The location should be easily accessible and ergonomically designed to enable comfortable and effortless operation
- When connecting the swivel pump, ensure that connecting hoses and pipe systems are tight, pressure-resistant and correctly installed

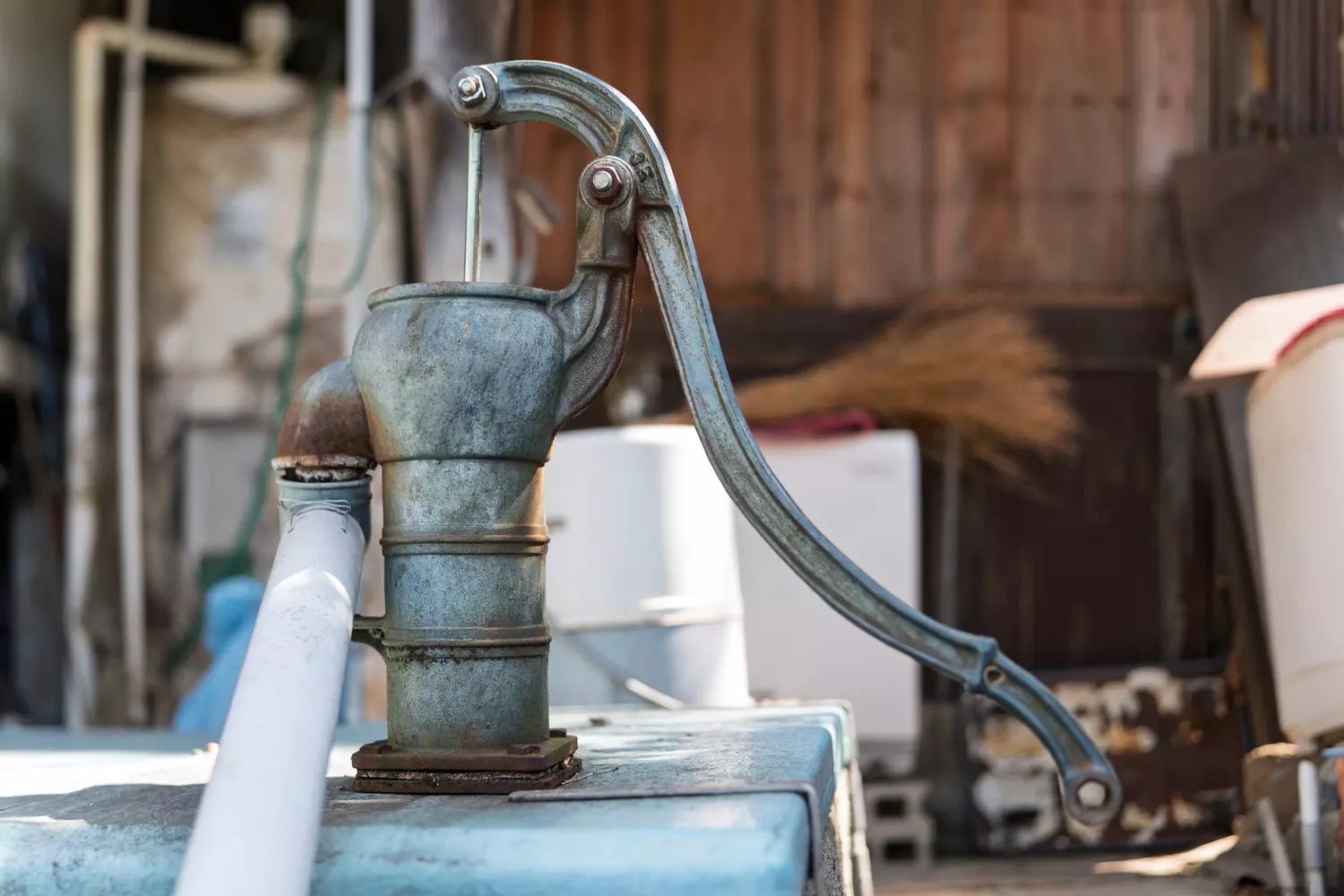

How to clean a swivel pump
Regular and professional cleaning ensures that the mechanism works reliably in the long term and that wear is recognised at an early stage. The following steps will maintain the functionality and make the system frost-proof in the long term.
- Lubricate all moving parts at regular intervals to minimise friction and ensure a smooth stroke movement
- Drain all water from the pump before the winter period to prevent frost damage to pistons, cylinders and valves
- Check valves and each seal of the swing pump for wear, cracks or material fatigue and replace damaged components in good time
- If necessary, clean the piston and pump cylinder with warm water to remove deposits and fine dirt particles
- Check all connecting hoses and connections for leaks so that no water is lost and no air is introduced
The advantages of using a swivel pump in everyday life
In everyday use, the Schwengel pump impresses with its simple technology, high reliability and versatility.
- Operation is completely independent of the power grid, which saves energy costs in the long term
- As a purely mechanical system, it is an environmentally friendly alternative to electric pumps
- The robust design ensures low maintenance and a long service life
- It is ideal for garden irrigation or as an additional water source in emergency situations
- The simple and nostalgic design blends harmoniously into almost any garden design
- The manual pump supports a conscious understanding of your own water consumption
- As a hand pump in the garden, it is easy to understand and can be operated safely by the whole family
Areas of application in the home and garden
Swing pumps are mainly used where a simple and independent water supply is required. They are ideal for filling watering cans and rain barrels and thus support the needs-based irrigation of plants. Manual pumping also proves to be a practical solution for supplying raised beds or small vegetable patches, as water can be extracted in a targeted and controlled manner.
Swing pumps are used particularly frequently in allotments, on weekend plots or at holiday homes, where a permanent power connection is not always available. In addition to their functional role, they are also increasingly taking on a design role, as the technology can be visibly integrated into the surroundings. Many owners deliberately decide to incorporate them into the garden design or to clad the swivel pump in order to combine technology and aesthetics.
